Brand Name : SOLLROC
Model Number : T51
Certification : SGS
Place of Origin : China
MOQ : 1 piece
Price : 80-500
Payment Terms : T/T,
Supply Ability : 10000 pieces/month
Delivery Time : 18-25
Packaging Details : Cartons + ply wood case (no plastic)
Name : T51 Threaded Button Bits Top Hammer Drilling Tools For Drilling Mining
Material : Carbide, Steel Skirt And Carbide Bit
Diameter : 102mm-152mm
Face shape : Flat, Drop Center
casting technique : forging
Application : Used In Mining And Quarrying,tube Drilling
MOQ : 1 piece
Packaging : carton+plywood case
Color : black, red ,yellow, blue, or as request
Product Description
Sollroc offers high quality of tophammer drilling equipments , the main products are including tapered button bits and threaded button bits and tapered drill steel .the products made with high quality of raw material through special heat treatment ,various type suitable for afferent work site.
T51 thread Retrac body button bits
Dia. | Tip size (mm) | Flushing hole No. | Weight | ||||
mm | inch | Front | Gauge | Angle | Side | Front | |
89 | 3 1/2" | 13x4 | 13X8 | 40° | 2 | - | 5.3 |
89 | 3 1/2" | 13x5 | 13x8 | 35° | 2 | 1 | 5.3 |
89 | 3 1/2" | 11x3,11x2 | 13x6 | 35° | 4 | - | 5.3 |
89 | 3 1/2" | 11x4,11x1 | 13x8 | 35° | 4 | - | 5.3 |
89 | 3 1/2" | 13x4,13x1 | 13x8 | 35° | 4 | - | 5.3 |
102 | 4" | 14x4 | 14x8 | 40° | 2 | - | 7.3 |
102 | 4" | 13x6 | 16x8 | 35° | 2 | 1 | 7.3 |
102 | 4" | 13x4,13x1 | 14x8 | 35° | 4 | - | 7.3 |
102 | 4" | 13x4,13x2 | 13x8 | 35° | 4 | 1 | 7.3 |
102 | 4" | 13x4,13x1 | 14x8 | 35° | 4 | 1 | 7.3 |
115 | 4 1/2" | 14x6 | 14x8 | 35° | 2 | - | 9.8 |
115 | 4 1/2" | 14x6 | 16x8 | 35° | 2 | - | 9.8 |
115 | 4 1/2" | 13x4,13x2 | 14x8 | 35° | 4 | - | 9.8 |
115 | 4 1/2" | 13x4,13x3 | 14x8 | 35° | 4 | - | 9.8 |
115 | 4 1/2" | 14x4,14x2 | 16x8 | 35° | 4 | - | 9.8 |
127 | 5" | 14x8 | 16x8 | 35° | 2 | 1 | 12 |
127 | 5" | 16x4,13x2 | 16x8 | 35° | 4 | - | 12 |
127 | 5" | 14x4,14x3 | 14x8 | 35° | 4 | - | 12 |
Features
1. Cost - Initially cheaper investment
2. Less Impact Damage - Impact is less damaging to the cutting structure
3. Better in Hard Rock Formations - The fracturing action of a button bit is better in non-homogeneous rock formations.
4. More Control Over the Bit - In directional drilling applications, a button bit is easier to control offering lower torque, greater flexibility and a more steady tool face.
Related tools
Tapered bits
Diameter: 28mm-70mm
Degree: 4°,6°,7°,11°and 12°
Type: Chisel bit, Cross bit and Button bit
Skirt: Short or Long Skirt
Coupling Sleeves
Thread: R22-R38, SR28-SR35, T38-T51, GT60, ST58/68
Shank Adaptors
Type: Atlas Copco, Tamrock, Montabert, Ingersoll-Rand,
Furukawa, Boart Longyear and Gardner Denver etc.
Thread: R22-R38, SR28-SR35, T38-T51, GT60, ST58/68
Integral Drill Steel
Diameter: 28mm-41mm
Shank: H22x108mm, H25x159mm
Length: 400mm-4345mm

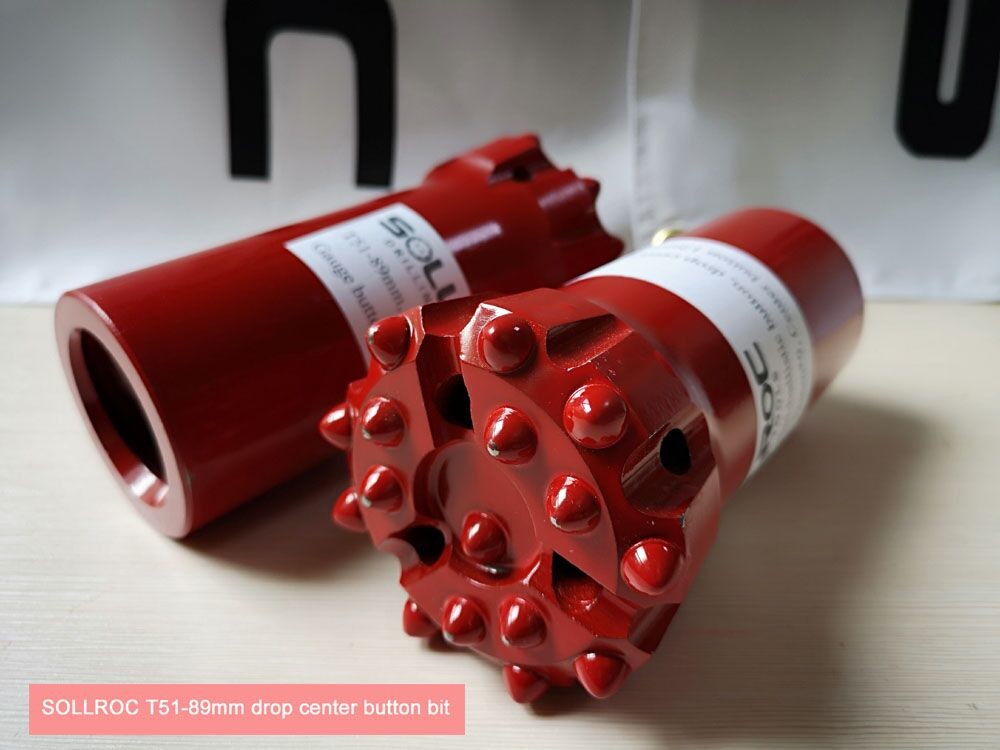

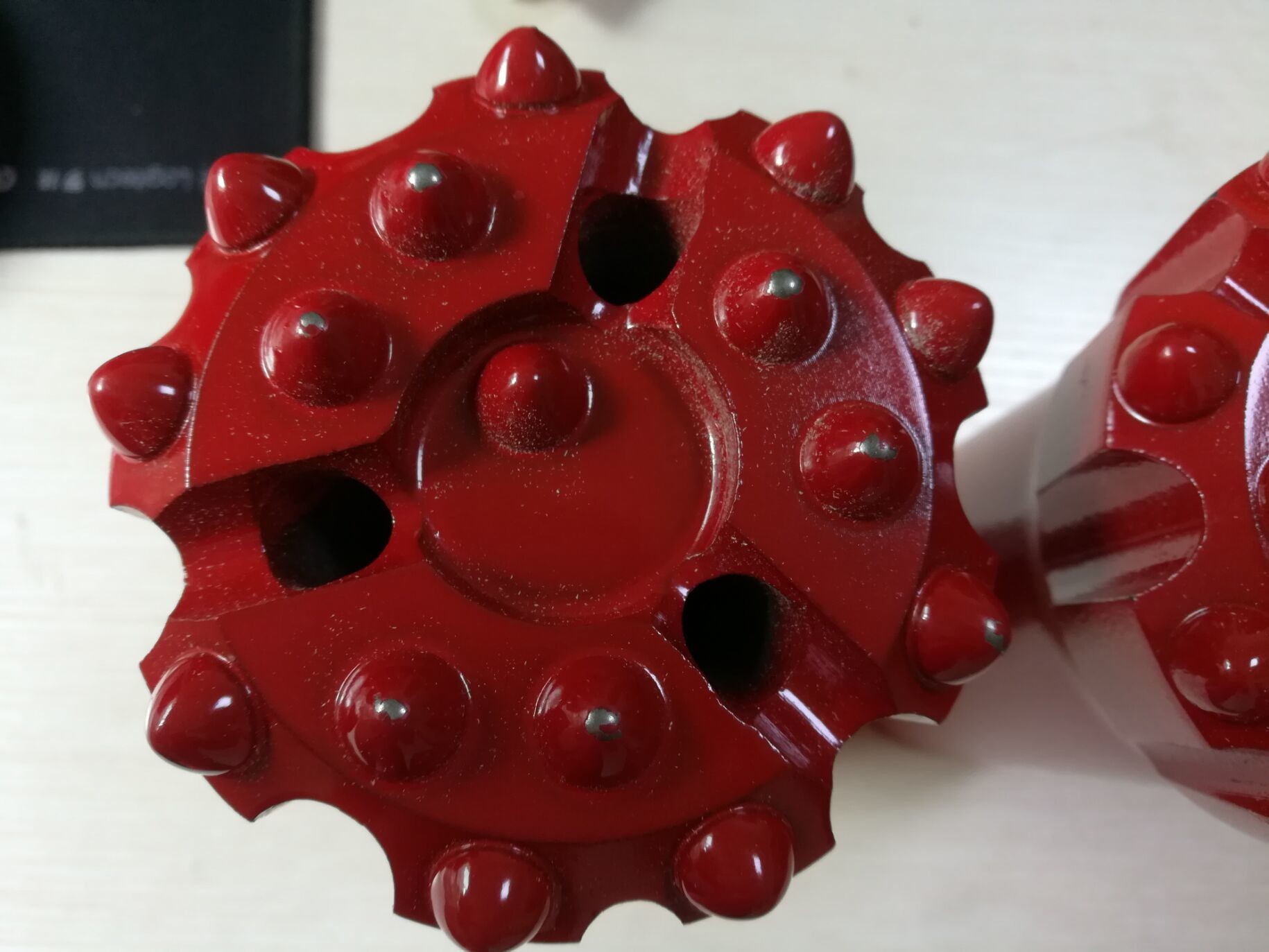

Detailed pictures
Packaging and Shipping
Packaging: carton+plywood case, or as request.
Shipping: By air, by sea, by express, or as requset.
Company Information
Sollroc , with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.
Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard.
![]() |
