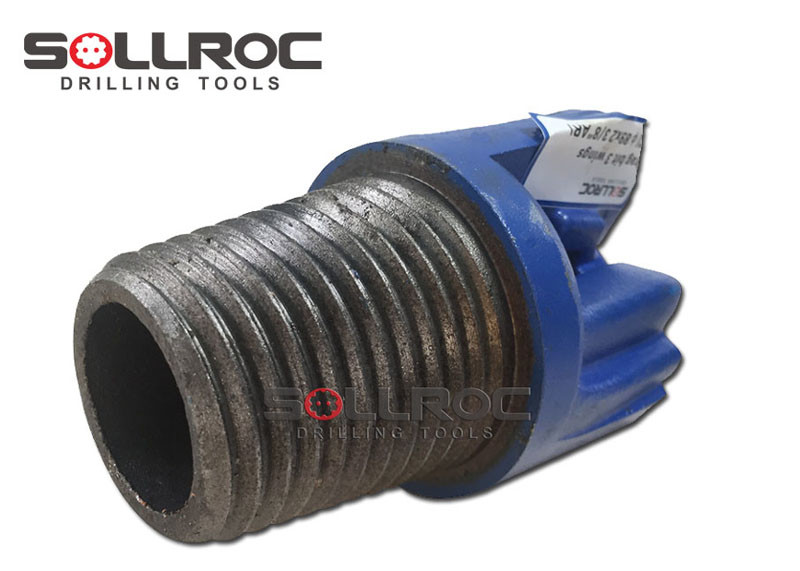

89mm stepped 3 wings Drag Drill Bit 3 1/2 inch for drill pipe 76mm

Name: 89mm stepped 3 wings Drag Drill Bit 3 12 inch for drill pipe 76mm
Brand: SOLLROC
Price: 1 USD

Brand Name : SOLLROC

Model Number : SC-Step-3-203

Certification : SGS

Place of Origin : China

MOQ : 1 set

Supply Ability : 20000 sets per month

Delivery Time : 4 weeks

Packaging Details : Cartons + ply wood case (no plastic)

Material : alloy steel with carbides

Color : As request

Model : Chevron and Step type

Applications : mining and water well drilling

Thread : API 2 3/8" REG or 3 1/2" REG

Diameter available : 2"(51MM)~17 1/2"(444.5MM)

Contact Now

89mm stepped 3 wings Drag Drill Bit 3 1/2 inch for drill pipe 76mm

drag bit is a drill bit usually designed for use in soft formations such as sand, clay, or some soft rock. However, they will not work well in coarse gravel or hard rock formations. Uses include drilling water wells, mining, geothermal, environmental and exploration drilling. Whenever possible, they should be used to drill pilot holes because they produce cuttings that are easiest to log.

Step type bits are the most common type of drag bit used in the world today. They are primarily designed for soft to medium formations.

Chevron bits are designed for medium to hard formations and are used in areas that contain a lot of rock and also in the oilfield for drilling out concrete casings and plugs.

Three wings stepped drag bits diameter:

Diameter	Connection thread
3 7/8" - 4 3/4"	2 3/8" API Pin
4 7/8" - 5 1/8"	2 3/8" API Pin
5 1/4" - 5 1/2"	2 3/8" API Pin
4 5/8" - 5"	2 7/8" API Pin
5 1/8" - 5 1/2"	2 7/8" API Pin
5 5/8" - 6 1/4"	3 1/2" API Pin
6 1/2" - 6 3/4"	3 1/2" API Pin
7" - 7 1/2"	3 1/2" API Pin
7 5/8" - 8"	3 1/2" API Pin
