SGS Certified Rock Drilling SRC004 Reverse Circulation Hammer

Name: SGS Certified Rock Drilling SRC004 Reverse Circulation Hammer
Brand: SOLLROC
Price: 1 USD

Buy cheap SGS Certified Rock Drilling SRC004 Reverse Circulation Hammer product

Brand Name : SOLLROC

Model Number : 3''-5.5'' RC Hammer

Certification : SGS

Place of Origin : China

MOQ : 1 piece

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram

Supply Ability : 5000pcs per month

Delivery Time : 15-22 days

Packaging Details : Cartons + ply wood case (no plastic)

Color : Black or you wanted

Material : High Carbon Steel

Application : Hole Drilling in mines, Hydrology and water well ,Geothermal well

Usage : Geologic exploration,gravel stratu

Formation : Complicated gravel formation

Quality : best

Shank : 3''-5.5''

Contact Now

Wide Application Range Rock Drilling Src004 Reverse Circulation Hammer

Product Introduce:

RC drilling refers to Dual Wall or Dual Tube Drilling. RC drilling applies two rods with inner and outer tubes.Air is blew down the annulus of the rod and enter into hammer and bit.Rock formation fragments crushed by bit are collected into the inter tube via air hole on the bit head. And then returned to the ground and enter into sampling system.Its hammers and bits are widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.

Adavantages:

1) Simple structure ensure the easy operation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts and operation parts.
3) The good seal effect eliminates the problems caused by water and flushing entering into the inner cylinder of hammer.
4) Smooth and stable speed.
5) Excellent for casing system and water well projects.

Specification:

Hammer	Bit Shank	Hole Range (mm)	External Diameter (mm)	Length (less bit) mm	Weight (kg)	Connection Thread	Working Pressure
RC3-E531	SRC531	84-100	81	1069	29	3" Remet	1.5-3.5Mpa
RC3.5-Y	SRC3.5Y	98-115	94	1184	44	3" Remet	1.5-3.5Mpa
RC4-E004	SRC004	111-127	107	1252	52	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E542	SRC542	113-130	109.5	1191	57	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E543	SRC543	120-135	116	1191	63	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E545	SRC545	122-135	117.5	1261	65	4" / 4.5" Remet 4" / 4.5" Metzke	1.5-3.5Mpa
RC5-P40	SPR40(SPR040)	124-142	120.5	1362	80.5	3.5" / 4.5"Remet 3.5" / 4.5"Metzke	1.5-3.5Mpa
RC5.5-P52/P52R	SPR52/SPR52R	126-142	121	1227	68.5	4" / 4.5"Remet 4" / 4.5"Metzke	1.5-3.5Mpa
RC5.5-E547	SRC547	130-146	124.5	1270	74	4.5" Remet 4.5" Metzke	1.5-3.5Mpa
RC5.5-P54/P54R	SPR54(SRC054)	135-150	130	1294	84.5	4.5"Remet 4.5"Metzke	1.5-3.5Mpa
RC5.5-M5456	MX5456	136-150	132	1362	90	4.5"Remet 4.5"Metzke	1.5-3.5Mpa

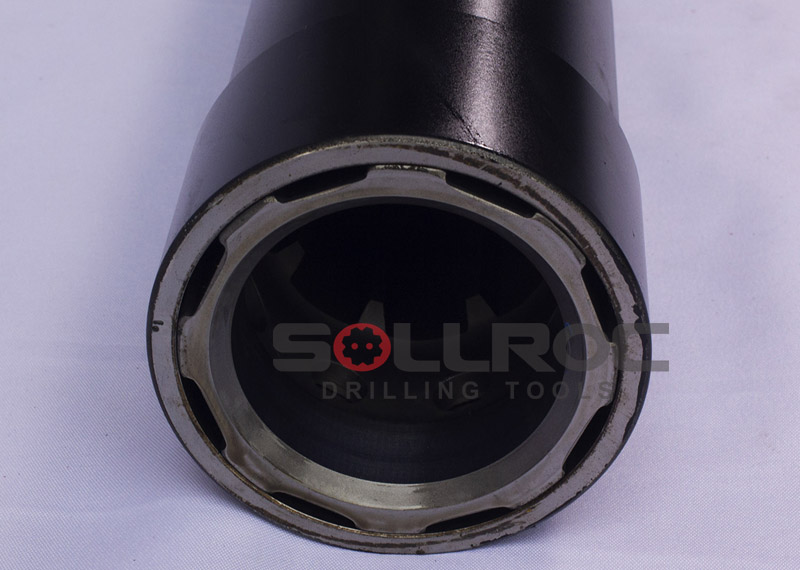

Detailed Photo:

SGS Certified Rock Drilling SRC004 Reverse Circulation Hammer

About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.

Delivery Way:

By Air, By express or By Sea
