Product description
In Top Hammer Drilling the hammer produces a percussive force on the drill rods or tubes, which is transmitted to the drill bit. The feed device is usually attached with a hinged boom to a mobile unit. The percussive system strikes the drill rod, for example 2,000-5,000 strikes per minute, and the rotation speed can be, for example, 60-200 rounds per minute. Together these elements make it possible to drill holes in the hard rock. The excess material (cuttings) is flushed up from the bottom of the hole by means of pressurized air or water. Top hammer drills are primarily used in mining, construction and quarrying of rock material. Top hammer drilling, combined with the “drill and blast” method, makes the whole excavation process extremely efficient.
Catalog of shank adapter
| Thread | Ref. | Rod type | Length |
| M-M | M-F |
| mm | feet | mm | feet |
| R25 | B25/H25 | Hex.25 | 915-5525 | 3 ~ 18 | 915-5525 | 3 ~ 18 |
| R28 | B28/H28 | Hex.28 | 915-5525 | 3 ~ 18 | 915-5525 | 3 ~ 18 |
| R32 | B32/H32 | Hex.32 | 915-5525 | 3 ~ 18 | 915-5525 | 3 ~ 18 |
| R32 | D32 | Round32 | 915-5525 | 3 ~ 18 | 915-5525 | 3 ~ 18 |
| R32 | B35/H35 | Hex.35 | 915-6400 | 3 ~ 21 | 915-6400 | 3 ~ 21 |
| T38 | D38 | Round39 | 915-5525 | 3 ~ 18 | 915-5525 | 3 ~ 18 |
| T45 | D45 | Round46 | 915-5525 | 3 ~ 18 | 915-5525 | 3 ~ 18 |
| T51 | D51 | Round52 | 915-5525 | 3 ~ 18 | 915-5525 | 3 ~ 18 |
| T60 | D60 | Round 60 | 1830,4265 | 6, 14 | 1830,4265 | 6, 14 |
Advantage
*Material are developed by cooperated with National & Local Joint Engineering Laboratory for High-performance Metal Structure Materials and Advanced Manufacturing Technology to improve the fatigue resistance of drilling steel.
*Material is from Baosteel with strict process of steel smelting and rolling: Refining - Vacuum - Continuous casting - drilling hole method - surface peeling to control the content of non metallic inclusion and harmful element.
*Strictly control precision thread process to avoid thread too hot and broken effected by the high vibration and shaking of thread part when it works.
*Heat treatment: Fully Carburization - Air cool quenching - tempering. It make the rod keep high toughness and improve surface harness and whole strength as well.
*Thread strengthen: enhance the thread parts to improve the wear-resistance and longevity of the rod.
Application
Sollroc extension rods widely applied in drifting and tunelling drilling, surface blastinng hole, production drilling.
Package and Shipping
Package: carton+plywood case, or as request.
Shipping: By air, by sea, by express, as your request.

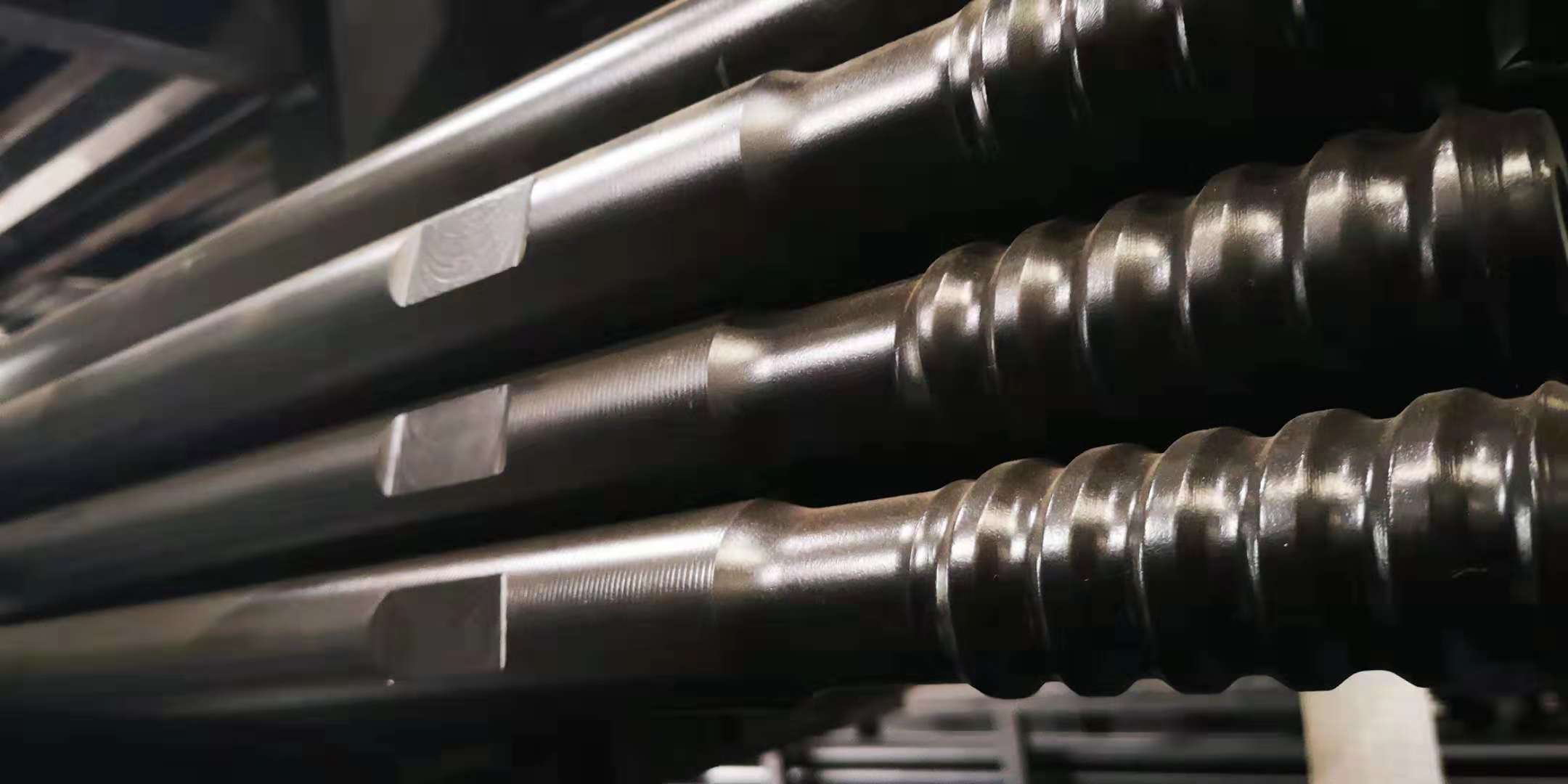

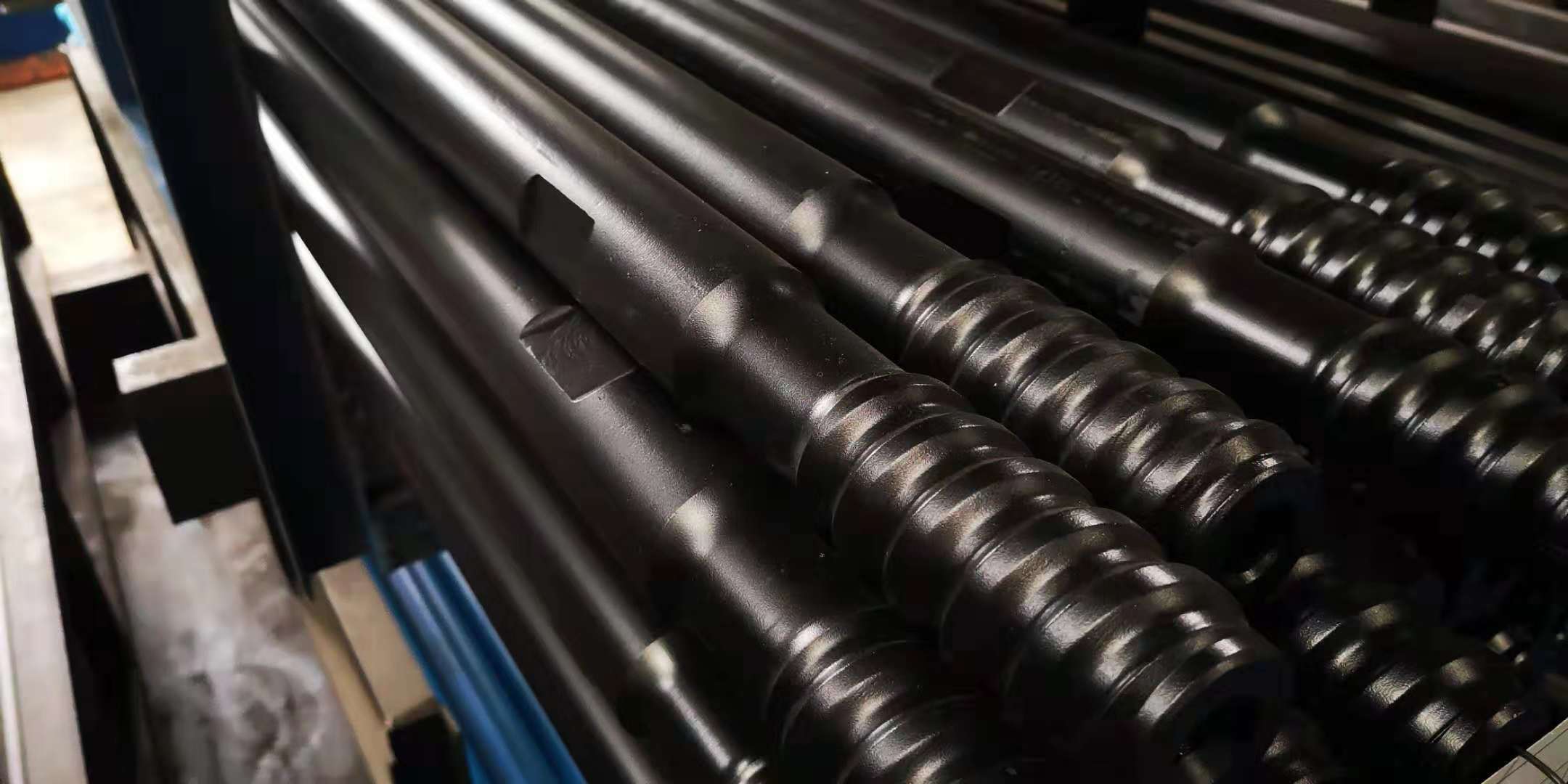

Detailed pictures
Company information
Sollroc , with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.
Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard.
