Mini Button Bit Grinder Machine And Grinding Cups For Sphererical And Ballistic Buttons

Product description

Sollroc supplys high quality grinding machine and grinding cup.

Technical parameter:

Safety Precautions

1. The working air pressure must be no more than 7 bars.
2. Operator must wear safety protection equipment like glove & safety goggles.
3. All the disassembly, assembly & maintenance must be done by professional.
4. Cleaning & servicing activity must be done after the power cut off.
5. Only use original spare parts.

Maintenance

Please use special tools to assemble or dissemble the grinder.

Attentions

1. The grinding cup must be connected solidly, keep off looseness and drop. If the O ring
is broken, change it in time.
2. Ensure the fluency of cooling water when grinding, be avoid of too high temperature,
or the diamond and buttons will be damaged.
3. Don’t be too hard when grinding, keep off the grinding cup drop from the bit and being
hurt.
4. If you find it is not so stable when put the grinding cup on button or swing strongly,
please stop grinding and check whether the center of cup, chuck and grinder shaft are
on one line.
5. Keep the pressure between 0.5-0.6MPa, and compressive air must pass through the
filter to keep the clean air. The air hose should not be too long (no more than 8m, the
inner diameter>12mm).
Lubricate it before grinding; close the air and water inlet port after grinding to keep off
dirt into the grinder.
6. Keep the integrity of the grinder; don’t demolish these spare parts at will.

Company information

Sollroc is recognized as one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools with more 10 years of experience. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.

Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard.

Detailed pictures

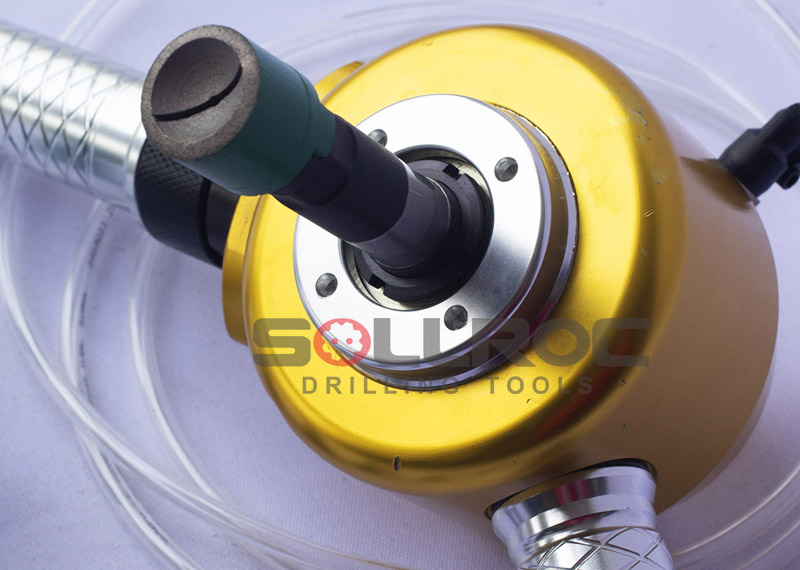

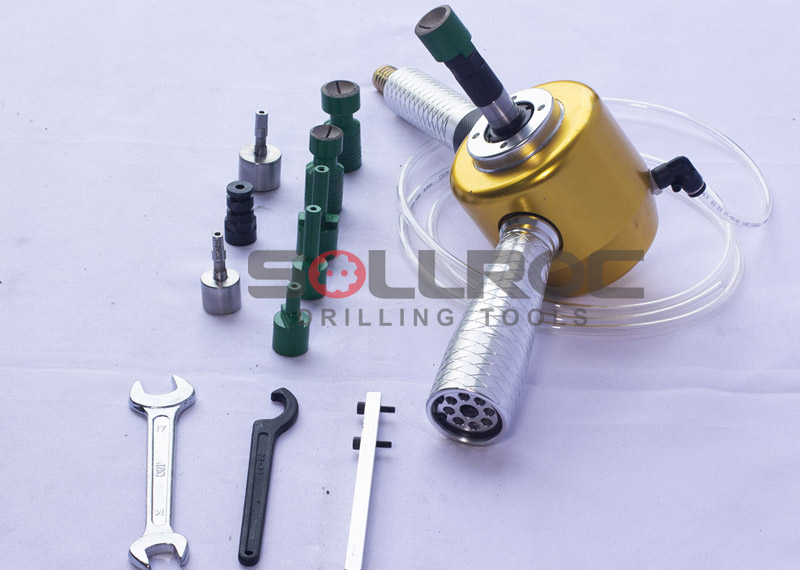

button bit sharpener

diamond grinding pins
